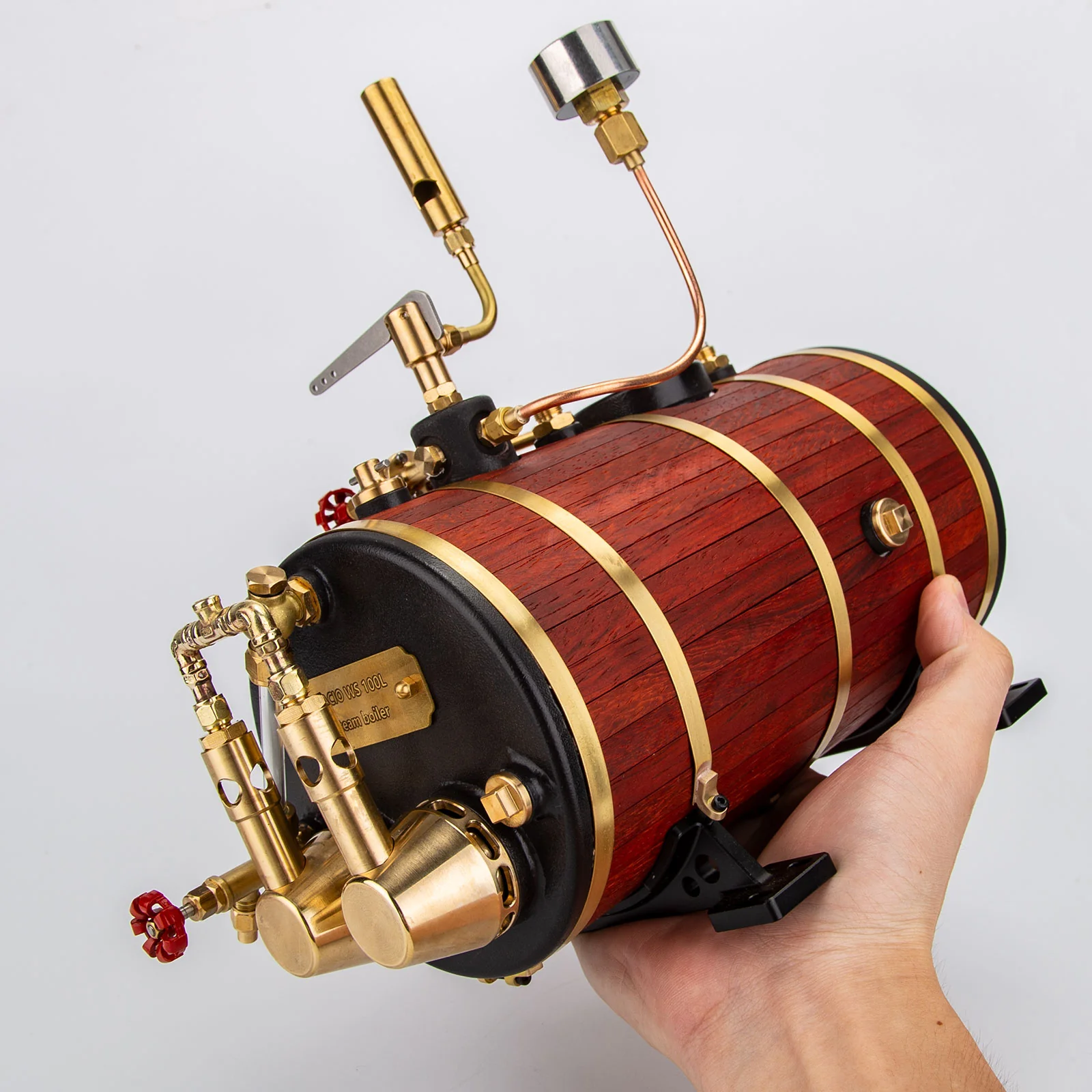

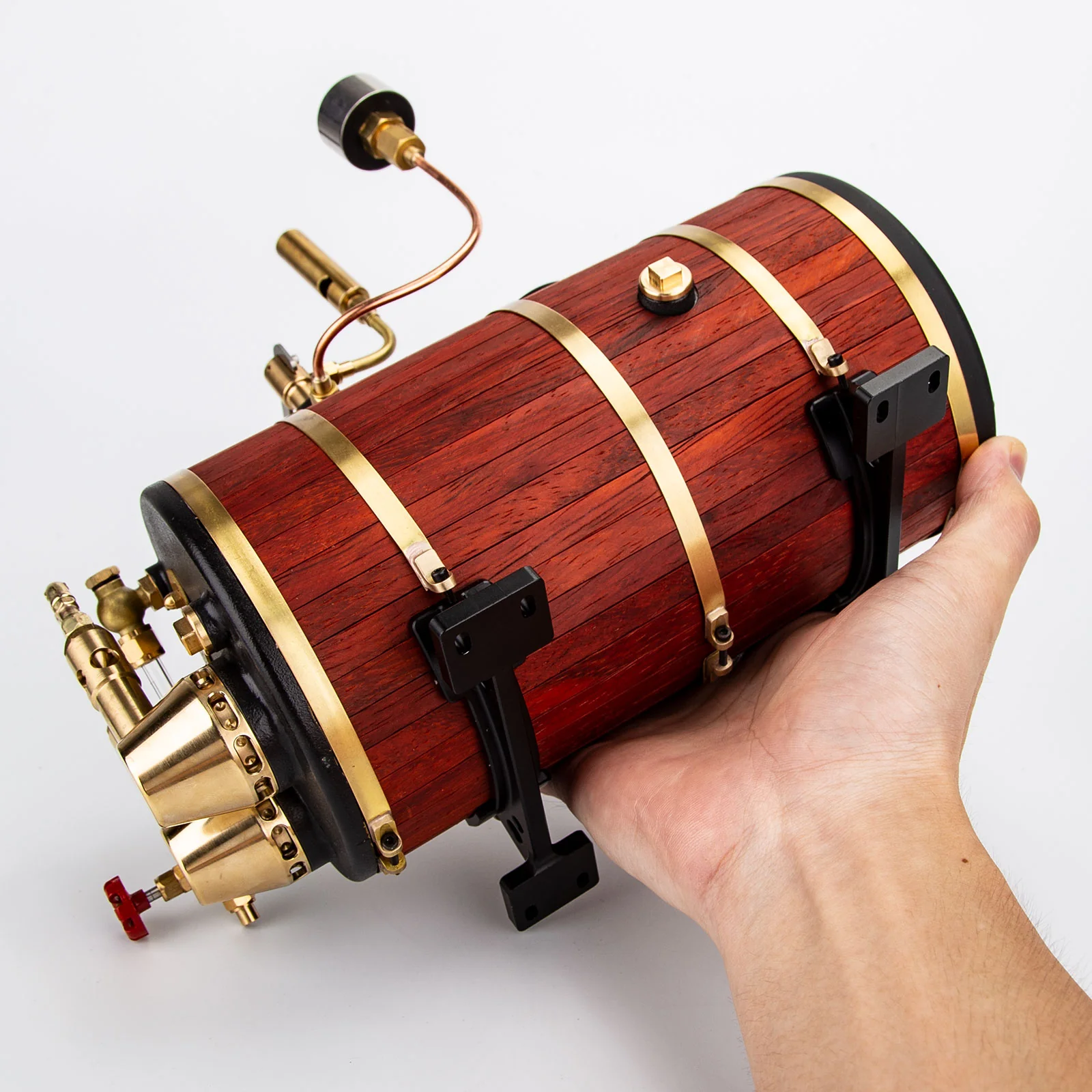

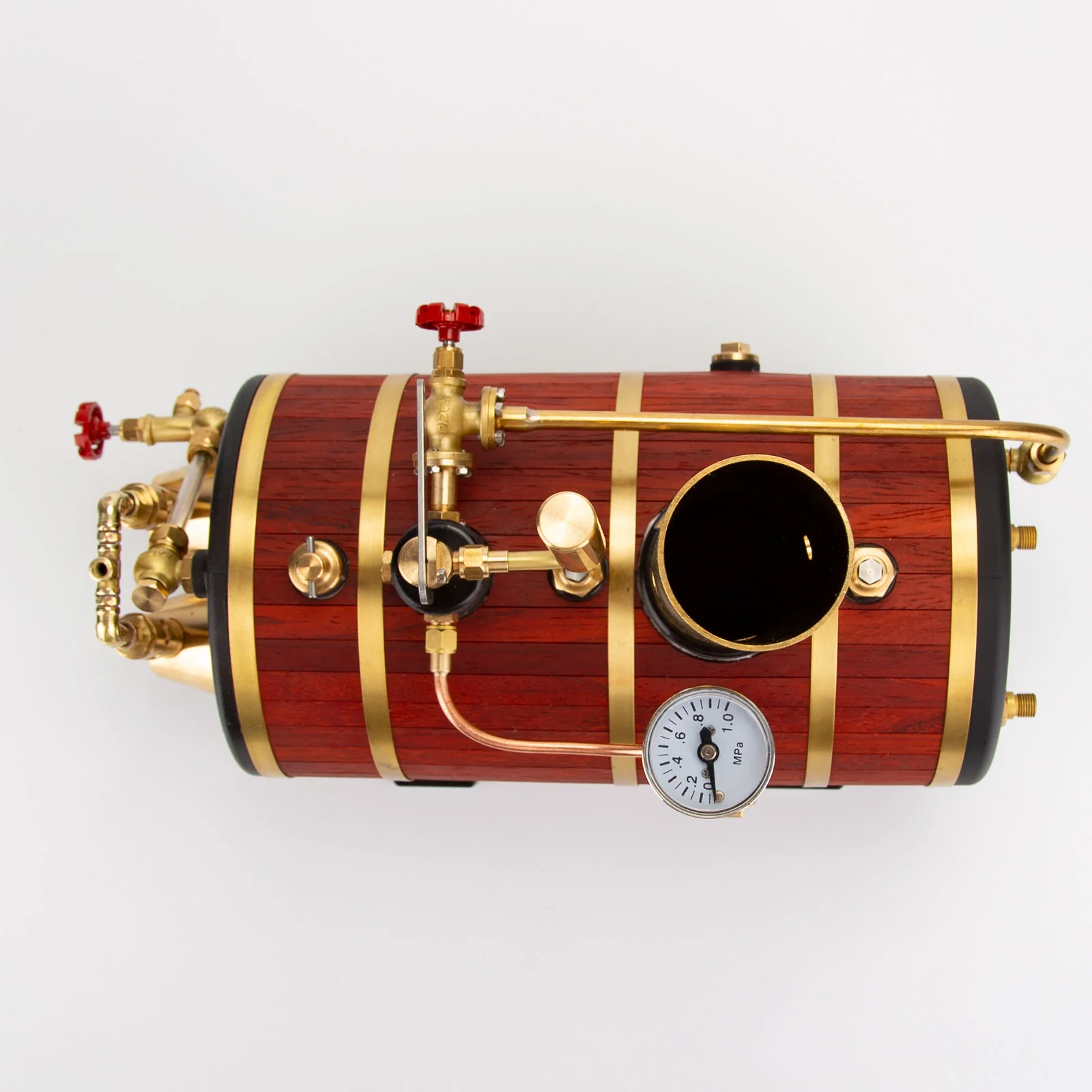

KACIO WS100L 850mL Horizontal Premium Steam Boiler

Features:

.Complete Equipment: The exquisite steam boiler features perfect appearance and performance, equipped with a pressure gauge, siren whistle, total valve, water gauge, dual safety valve, 1/4－40mm pipe joint, etc.
.Skillful Manufacture: Made of fine , the surface of the boiler is designed with a rosewood thermal insulation layer for superior heat preservation. With double steam outlets and a reserved smoke input port, the boiler is equipped with one reserved port on each side for convenient additional accessories.
.High Efficiency: The performance of the boiler with ultra-high thermal conversion will satisfy you! The pressure of the double combustion tube is available up to 0.4MPa at about 8min and the safety valve pressure is 0.5MPa for safety during use.
.Application: The best retro and collectible artwork is a gospel for steam model enthusiasts. Suitable for 1.0-1.5m steam model ships, single-cylinder, double-cylinder and three-cylinder steam engines that can be easily driven and even racing vessels.
.Instructions: Please limit the amount of water to 3/5 of full capacity and the pressure under 0.5MPa. Pay attention to the burning duration to avoid dry burning and pump out the remaining water inside after use. In conjunction with a fire control system for gas-saving and safety, it is better to use butane as fuel.

Specifications:

.Material: Brass + Rosewood
.Brand: KACIO
.Type: WS100L
.Boilder Outer Diameter: 105mm
.Boilder Length: 190mm
.Total Length (Including Spark Plug): 222mm
.Full-Load Capacity: 850mL
.Safety Valve Pressure: 0.5MPa
.Pipe Joints Specification: 1/4－40mm
.Product Dimensions: 10.5 x 10.5 x 22.2cm
.Product Weight: 2800g
.Package Dimensions: 35 x 19 x 23cm
.Package Weight: 3000g
.Packing: Box
.Ages: 14+

Package Listing:

.1*Boiler Model
.1*Siren Whistle
.1*Total Valve
.1*Pressure Gauge
.1*Butane Tank Coupling Hose
.1*1/4-40mm Pipe Joint
.1*3.5mm Pipe
