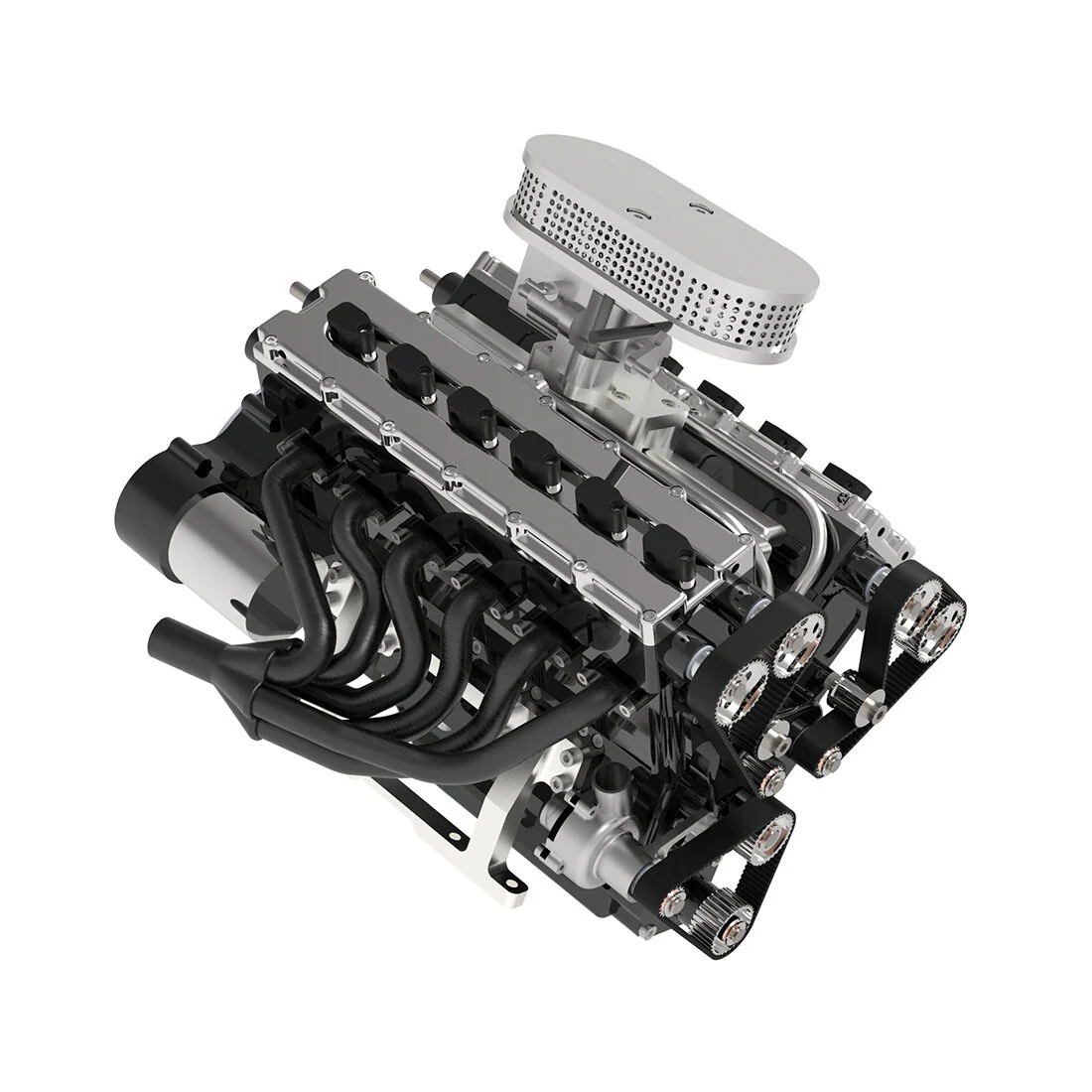

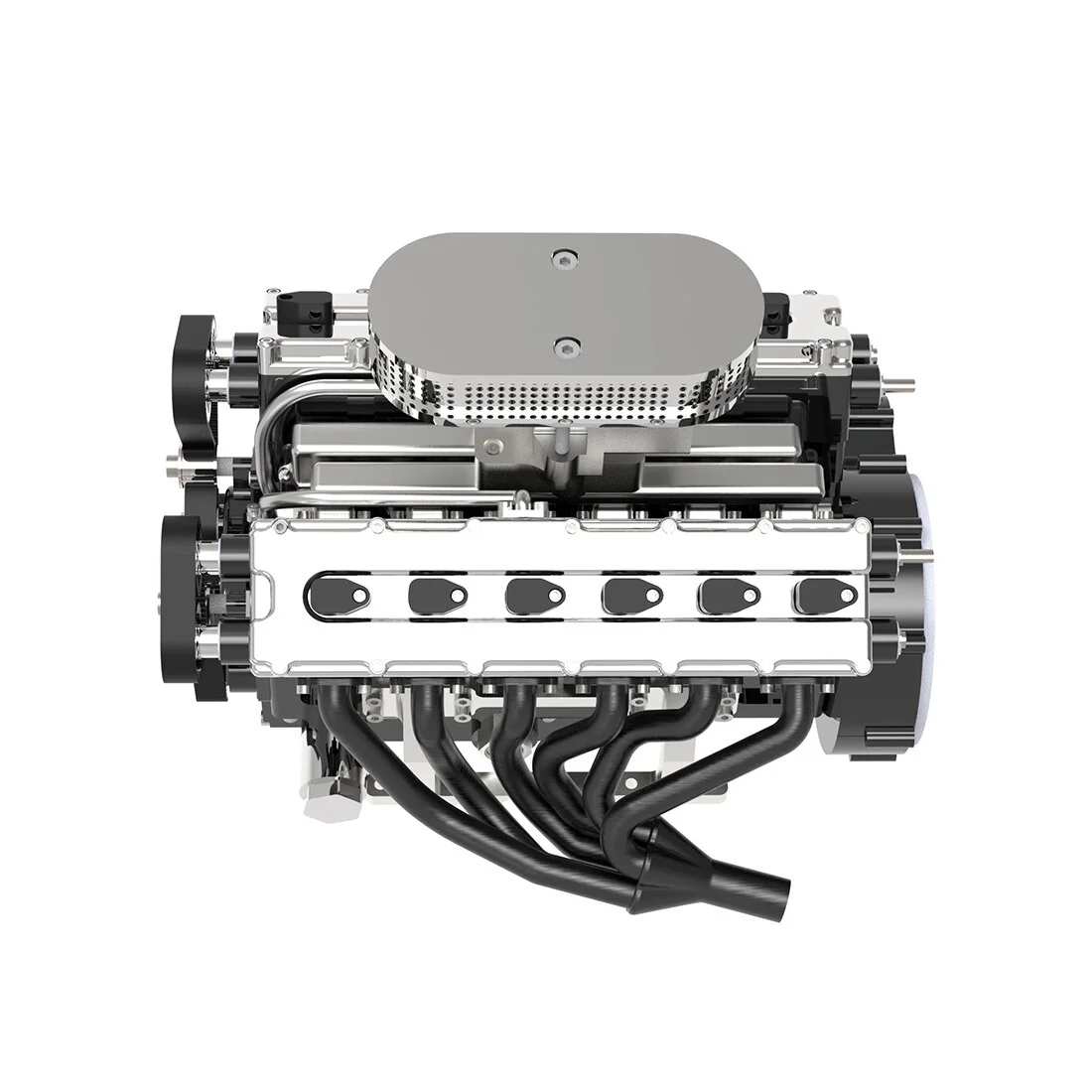

ENJOMOR V12 Engine GS-V12 72CC DOHC 4-Stroke 12-Cylinder 48-Valve Water-Cooled Electric Start Gasoline Engine Model - V12 Engine Model That Works

Features:

1. This V12 engine employs a double overhead camshaft valvetrain with a total of 48 valves, showcasing an exposed timing belt and meticulous attention to scale and appearance. Striving to maintain peak performance, it delivers extraordinary power.

2. The independent lubrication system features an oil sump pump that directs oil to the engine's top for efficient lubrication. A transparent oil well cover eliminates the need for disassembly to check oil levels, promoting easy recycling and reuse.

3. Efficient heat dissipation is ensured by the side water-cooling pump, extending the engine's working time and overall service life.

4. With a Hall-type CDI pulse dual-distribution ignition design and a 3548 brushless starter motor, this engine boasts one-button start functionality for user convenience.

5. Precision-manufactured using all-aluminum CNC, the entire casing replicates a highly realistic shape and incorporates an integrated exhaust manifold to faithfully restore the authentic engine sound.

6. The three piston rings (air ring, cone ring, oil ring) design, along with 32 process oil rings, guarantees in-cylinder compression and maximizes combustion efficiency.

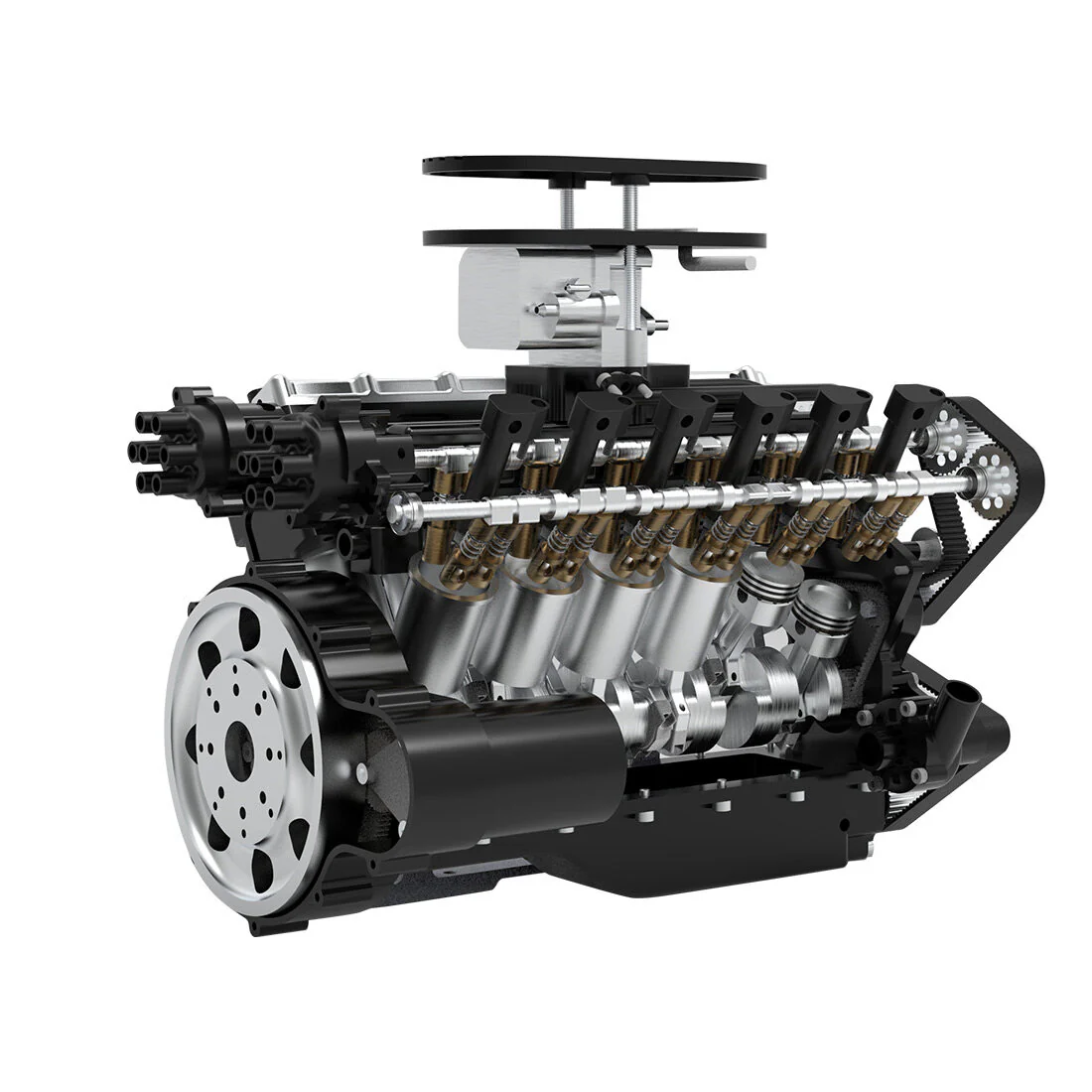

7. Featuring a high-hardness piston cylinder liner and a cast integrated crankshaft, supported by full bearings (three large bearings in the middle and small bearings at both ends), this engine boasts high strength and durability.

8. Widely applicable, this engine is suitable for modifying large-scale model cars, ships, tanks, and serves as an ideal desktop DIY working engine.

9. A testament to mechanical craftsmanship, the engine's reliability and exceptional performance have garnered popularity among high-end collector engine users, earning praise from model engine enthusiasts.

10. Note: Additional ignition and water cooling kits are required for the engine: CDI igniter2, power supply voltage 10-12V2; 80A ESC1, power supply voltage 24V (6S battery), fuel tank1, fuel pipe1, radiator fan1, water cooling pipe*1.

Specifications:

Material: Metal
Color: As Pictures Shown
Brand: ENJOMOR
Model: GS-V12
Form: Preassembled Edition
Dimensions: 23.5*14*23cm
Weight: 8KG
Engine Type: Gasoline Internal Combustion Engine
Valve Mechanism Type: DOHC
Displacement: 72cc
Cylinder: V-shaped Twelve Cylinders
Stroke: Four-Stroke
Bore Diameter: 20mm
Stroke: 18mm
Valve: 48 Valves (4*12)
Output Shaft Diameter: 10mm
Maximum Speed: 10000rpm
Maximum Power: 3.8 kw
Cooling Method: Water Cooling
Lubrication Method: independent lubrication (oil pump lubrication);
Starting Method: electric start (including brushless starter motor);
Ignition Mode: cdi igniter and distributor control ignition;
Spark Plug Type: 1/4-32 thread ME8 spark plug;
Ignition Voltage: 10-12V
Starting Power supply: 24 batteries (not included);
Fuel: 95# and above gasoline
Engine Oil Model: 0-10w
Oil Volume: 60-80mL

Packing List:

1* ENJOMOR V12 Engine Model (including 12pcs spark plugs)
1* Instructions
